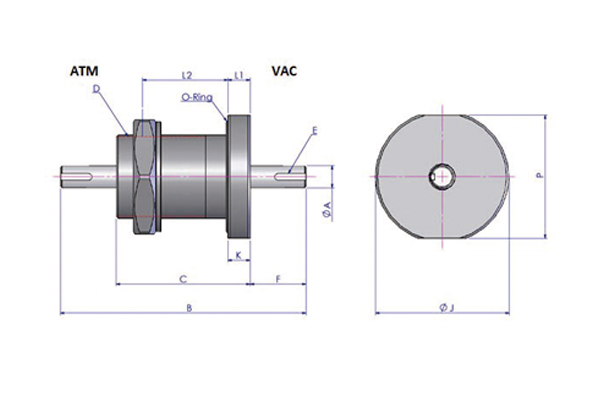

Detail Specification
Shaft Diameter | 0006 | 0010 | 0012 |
øA | 6 +0 / -0.018 | 10 +0 / -0.022 | 12 +0 / -0.022 |
B | 97.5 | 119.5 | 119.5 |
C | 57.5 | 69.5 | 69.5 |
D | M32 x 1.5 | M38 x 1.5 | M38 x 1.5 |
E | 0.5D x 12L (Flat) | 3W x 1.8D x14L (Keyway) | 3W x 1.8D x 14L (Keyway) |
F | 20 | 25 | 25 |
øJ | 55 | 60 | 60 |
K | 10 | 10 | 10 |
P | - | 55 | 55 |
L1 (Bearing Position 1) | 10.5 | 10 | 10 |
L2 (Bearing Position 2) | 38 | 49 | 42 |
O-Ring | P39 | P45 | P49 |
Model Number | ABS0006CNR10 | ABS0010CNR10 | ABS0012CNR01 |
Base Pressure (Pa) | 10-6 | ||
Leak Rate (Pa*m3/sec) | < 10-12 | ||
Pressure Bias ( kg/cm2 ) | 2 | ||
Temp. Range (°C ) | 0 ~ 80 | ||
Applicable Gas | Inert Gas | ||
Bearing Model | 627 | 6001 | 7000 |
Bearing Material | SUJ2 | ||
Housing Material | SUS304 | ||
Shaft Material | SUS420 |
