ACMCNR10

公制產品

  • 產品型式:

馬上詢價!

詳細說明

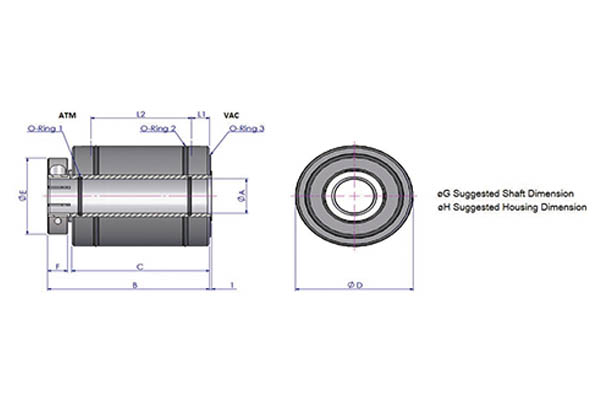

Shaft Diameter 0010 0020 0025 0030 0040 0050 0075
øA 10 +0.03 / +0.01 20 +0.04 / +0.02 25 +0.04 / +0.02 30 +0.04 / +0.02 40 +0.05 / +0.02 50 +0.05 / +0.02 75 +0.06 / +0.03
B 78 82.5 88 93 96 98 115
C 64 68.5 74 79 80 82 96
D 48 +0 / -0.02 58 +0 / -0.03 63 +0 / -0.03 73 +0 / -0.03 88 +0 / -0.04 98 +0 / -0.04 137 +0 / -0.04
øE 34 44 49 54 69 79 109
F 10 10 10 10 12 12 15
øG 10 -0.01 / -0.03 20 -0.01 / -0.03 25 -0.01 / -0.03 30 -0.01 / -0.03 40 -0.01 / -0.03 50 -0.01 / -0.03 75 -0.01 / -0.04
øH 48 +0.05 / +0.03 58 +0.06 / +0.03 63 +0.06 / +0.03 73 +0.06 / +0.03 88 +0.07 / +0.04 98 +0.07 / +0.04 137 +0.07 / +0.04
L1  (Bearing Position 1) 8.5 9.5 11.5 11.5 11.5 12 15.5
L2  (Bearing Position 2) 46 48 50 54 55 56 62
O-Ring 1 S10 S20 S25 S30 S40 S50 S75
O-Ring 2 S38 S48 S53 S60 S75 S85 S125
O-Ring 3 S45 S55 S60 S70 S85 S95 S132

Model Number ACM0010CNR10 ACM0020CNR10 ACM0025CNR10 ACM0030CNR10 ACM0040CNR10 ACM0050CNR10 ACM0075CNR10
Base Pressure (Pa)  10-6
Leak Rate (Pa*m3/sec) < 10-12
Pressure Bias ( kg/cm2 ) 2
Temp. Range (°C ) 0  ~  80
Applicable Gas Inert Gas
Bearing Model 16003 6906 6907 6908 6910 6912 6918
Bearing Material SUJ2
Housing Material SUS304
Shaft Material SUS420
